OEM Power Tool Component Manufacturing: Custom M14/M10/5/8-11 Thread Adapters from Drawing to Mass Production

In the world of power tool accessories, the thread adapter is a small component that carries enormous responsibility. A poorly manufactured adapter can compromise tool safety, ruin a workpiece, and erode end-user trust in the brand that sold it. As manufacturers of precision forged power tool components, we have spent years refining the path from a buyer's engineering drawing to a fully validated, mass-produced custom thread adapter. In this guide, we walk through every stage of our OEM production process so that procurement managers, product engineers, and brand owners understand exactly what to expect when they partner with us for custom M14, M10, M5, and 8-11 thread adapter production.

Why Thread Adapter Quality Determines Tool Performance

Thread adapters bridge the gap between a power tool spindle and its accessories. When an end user attaches an angle grinder disc using an M14 adapter or converts a drill with an extension rod, the threaded joint must absorb rotational torque, axial vibration, and lateral stress simultaneously. A single dimensional deviation of even 0.05 mm in pitch diameter can cause cross-threading, loosening under load, or catastrophic disc ejection. That is why we treat thread adapter production as a safety-critical manufacturing discipline rather than a simple turning job.

In our factory, we have seen how a minor hardness mismatch between adapter and spindle can lead to galling over hundreds of operating hours. We have also observed how inconsistent chamfer geometry on M10 adapters creates installation difficulties for end users who rely on hand-tightening. These real-world failure modes inform every decision we make, from raw material selection to the final go/no-go gauge check. Our goal is to deliver adapters that our customers can install with confidence and that their end users never need to think about again.

Understanding the M14, M10, M5, and 8-11 Thread Standards We Manufacture

Before we discuss production, it helps to clarify the thread standards our customers most frequently request. Each thread type serves a distinct application segment, and we maintain dedicated tooling for all four.

The ISO metric thread M14 x 2.0 is the dominant standard for angle grinder spindle connections in most global markets. We produce M14 adapters in both left-hand and right-hand configurations, with lengths ranging from compact flush-mount designs to extended shafts for deep-access applications. Our M14 production line handles adapters for cutting, grinding, flap disc, and wire brush attachments.

The M10 x 1.5 thread is commonly found on smaller angle grinders, rotary tools, and certain drill press spindles. We manufacture M10 adapters that connect to pressure plates and conversion rods, enabling end users to mount standard discs on non-standard spindles. Our M10 catalog also includes adapters for the growing segment of multi-tool conversion kits, such as drill-to-angle-grinder extension rods.

M5 threads appear in precision fastening contexts within power tool assemblies, and we produce M5 adapters and couplers for OEMs that source complete sub-assemblies from our facility. The 8-11 UNC thread (also written 5/8-11) is the North American standard for angle grinder arbors. We produce 8-11 adapters alongside our metric range, giving our customers the flexibility to address both European and North American markets from a single supplier.

Our Drawing-to-Production Workflow: Six Defined Stages

When a customer sends us a technical drawing for a custom thread adapter, we follow a structured six-stage workflow that ensures dimensional accuracy, process repeatability, and on-time delivery. Here is how we move from initial concept to finished goods.

Stage 1: Drawing Review and Design-for-Manufacturing Analysis

Our engineering team reviews every incoming drawing against our manufacturing capabilities. We check thread tolerances, surface finish callouts, material specifications, and geometric dimensioning and tolerancing (GD&T) annotations. If we identify features that increase cost or reduce yield without adding functional value, we propose alternatives to the customer. For example, we might suggest a rolled thread instead of a cut thread for higher fatigue resistance, or recommend a slight chamfer modification that improves assembly ergonomics. This collaborative review prevents downstream problems and saves our customers significant rework costs.

Stage 2: Material Selection and Sourcing

We stock a range of carbon steels, alloy steels, and stainless steels suitable for OEM power tool component manufacturing. For standard thread adapters, we typically work with 40Cr or 4140 alloy steel, which we source from certified mills with full traceability documentation. When a customer specifies a proprietary alloy or requests a particular hardness range after heat treatment, we validate the material in our metallurgical lab before committing to production volumes. Our material traceability system records heat numbers, chemical composition certificates, and mechanical test results for every lot we process.

Stage 3: Tooling Design and Fabrication

Our in-house tooling shop designs and manufactures custom forming dies, thread-rolling dies, and CNC fixtures for each new adapter project. We use wire EDM and CNC grinding to achieve the tight tolerances required for thread-form tooling. Because we build our own tooling, we maintain full control over dimensional accuracy and can modify tooling rapidly if the customer requests a design revision. This capability also means we do not depend on external tooling vendors, which keeps our lead times predictable and our costs transparent.

Stage 4: First Article Production and Validation

Once tooling is ready, we produce a first article batch. Every first article adapter undergoes a comprehensive inspection protocol that includes thread gauge verification using go/no-go ring gauges calibrated to ISO 1502, dimensional inspection on our coordinate measuring machines (CMM), surface roughness measurement, and hardness testing. We document all results in a first article inspection report (FAIR) that we share with the customer for approval before proceeding to mass production.

Stage 5: Mass Production with In-Process Controls

After customer approval, we transfer the job to our production floor. Our 40+ fully automatic CNC machines and cold-heading lines run continuously with in-process statistical controls. We monitor critical dimensions using automated gauging systems that flag any drift outside the specified tolerance window. Operators perform periodic checks at defined intervals, and our quality control team audits random samples from each production run. This layered approach to inspection ensures that every shipment of adapters meets the agreed specification.

Stage 6: Surface Treatment, Packaging, and Shipment

Thread adapters often require surface treatment to resist corrosion and improve appearance. We offer zinc plating, black oxide coating, nickel plating, and phosphate conversion coatings, all applied in our own surface treatment facility. After treatment, adapters receive a final inspection, are packaged according to customer specifications (bulk, blister pack, or custom retail packaging), and are prepared for shipment. Our logistics team coordinates ocean freight, air freight, or express delivery based on each customer's timeline and destination requirements.

Forging and Cold Heading: How We Build Strength Into Every Adapter

Thread adapters are not merely turned from bar stock. The highest-performing adapters begin their life as forged blanks that gain superior grain structure and mechanical properties from the forming process. We operate dedicated forging and cold-heading equipment that allows us to produce adapter blanks with a continuous grain flow following the part geometry. This grain orientation significantly improves fatigue resistance compared to machined-from-bar alternatives.

In our cold-heading department, we upset-feed and transfer-form adapter blanks at high speed. The cold-working that occurs during this process increases the surface hardness of the blank, which subsequently improves thread life. We control the degree of cold work carefully so that we achieve the desired hardness increase without making the material brittle. After forming, blanks move to our stress-relief ovens, where we normalize residual stresses before machining begins.

Our CNC turning and thread-rolling operations follow. We roll threads rather than cut them wherever the application permits, because rolled threads have a burnished surface finish, a compressive residual stress layer, and higher tensile strength than their cut-thread equivalents. For adapters that require cut threads due to geometry constraints, we use single-point threading on our CNC lathes with in-cycle thread gauging to verify pitch diameter in real time.

Quality Assurance: Our Multi-Layer Inspection System

Our quality assurance philosophy is built on prevention rather than detection. We design our processes to produce conforming parts by default, and we use inspection as a verification mechanism, not a sorting mechanism. Every custom precision forged component that leaves our facility has passed through multiple layers of inspection.

At the incoming stage, we verify raw material chemistry, mechanical properties, and surface condition. During production, automated vision systems and contact gauges monitor critical dimensions on a continuous or sample basis. After surface treatment, we verify coating thickness, adhesion, and corrosion resistance using salt spray testing per ASTM B117. Before shipment, our final inspection team performs a random audit against the approved drawing and the customer's acceptance criteria. We maintain complete inspection records that are available to our customers upon request, supporting their own traceability and compliance obligations.

We also calibrate all measuring instruments and gauges on a documented schedule traceable to national standards. Our calibration records demonstrate to auditors and customers that every measurement we report is trustworthy and traceable. This attention to metrological integrity is a cornerstone of our manufacturing operations and something we take very seriously as a precision component supplier.

Customization Options for Brand Owners and Distributors

We understand that our customers are not merely purchasing a metal part. They are building a product line, a brand identity, and a reputation for reliability. That is why we offer a broad range of customization options beyond the basic dimensional specification.

Our customization capabilities include custom logo engraving or stamping on adapter surfaces, proprietary packaging designs with customer branding, custom surface finishes and color coatings to match a brand's visual identity, adapter sets bundled with pressure plates, flange kits, and related accessories, and special thread combinations or multi-function adapters that consolidate multiple SKUs into one product.

For distributors entering new market segments, we also provide adapter sourcing guidance based on our market intelligence. We know which thread standards dominate in which regions, which adapter configurations are gaining traction in the trades sector, and which material and finish combinations deliver the best value proposition for specific price points. Our customers benefit from this knowledge as part of our OEM partnership model.

Our Manufacturing Facility: 40+ CNC Machines Under One Roof

Our production facility in Yuyao, Ningbo, is a leading established hardware production clusters in China. We have invested heavily in vertical integration, which means that every critical process, from forging to final inspection, happens within our own factory walls. This approach eliminates the coordination delays and quality inconsistencies that arise when production is fragmented across multiple subcontractors.

Our equipment roster includes multi-spindle automatic lathes for high-volume adapter turning, CNC thread-rolling machines for precision thread forming, cold-heading transfer presses for forging adapter blanks, automated plating and coating lines for surface treatment, coordinate measuring machines and optical gauging systems for dimensional verification, and hardness testing equipment including Rockwell and Vickers instruments. We maintain preventive maintenance schedules for every piece of equipment, ensuring that our machines operate within their specified accuracy envelopes at all times.

Our facility also includes dedicated production areas for hydraulic fittings and pipe brush assemblies, demonstrating our capability to manufacture a diverse range of precision metal components beyond thread adapters alone. This breadth of manufacturing experience means we understand material behavior across multiple product categories and can apply that cross-domain knowledge to improve our adapter production processes.

Typical Lead Times and MOQ Flexibility

We recognize that lead time and minimum order quantity are critical factors in supplier selection. Our vertically integrated model gives us control over scheduling that contract manufacturers who rely on external vendors simply cannot match. For standard thread adapters in our catalog, we can ship from existing stock within 5 to 7 working days. For custom adapters requiring new tooling, our typical timeline from drawing approval to first article delivery is 15 to 20 working days, with mass production beginning within 25 to 30 working days of first article approval.

Regarding minimum order quantities, we maintain a flexible policy that accommodates both emerging brands testing new product lines and established distributors ordering container-level volumes. We discuss MOQ on a project-by-project basis, taking into account tooling complexity, material sourcing requirements, and our customer's projected demand. Our goal is to build long-term partnerships, and rigid MOQ policies do not serve that objective. We encourage prospective customers to contact our sales team to discuss their specific requirements.

Thread Adapter Applications Across the Power Tool Industry

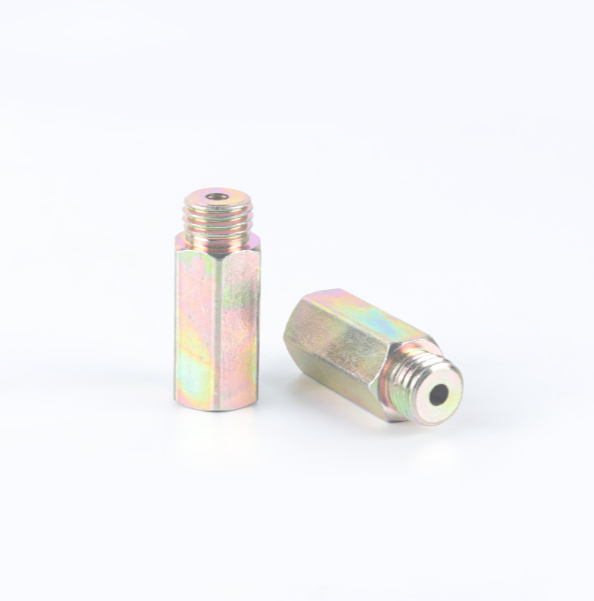

Our product range serves a wide spectrum of applications within the power tool industry. The most common use cases we support include angle grinder disc mounting adapters for both metric and imperial spindles, drill-to-angle-grinder conversion adapters such as our popular electric drill conversion extension rods, polishing and rust removal conversion joints that adapt rotary tools to specialized accessories, multi-size adapters that allow a single tool to accept discs with different arbor holes, and specialty adapters for niche applications such as pipe cleaning brushes and concrete grinding attachments.

Each application imposes its own set of performance requirements on the adapter. A cutting disc adapter on an angle grinder operating at 11,000 RPM must handle far greater centripetal forces than a polishing conversion joint at 3,000 RPM. We take these operating conditions into account when specifying material grades, thread tolerances, and surface treatments for each customer's adapter. Our application engineering team is available to help customers select the right specifications for their target use case, ensuring that our adapters perform safely and reliably in the field.

We also produce complementary components such as upper and lower pressure plates and flange kits. By sourcing adapters and pressure plates from a single supplier, our customers simplify their supply chain, reduce incoming inspection overhead, and ensure dimensional compatibility between mating components. This integrated sourcing approach is one of the key advantages we offer to brands and distributors building complete accessory product lines.

Compliance and Safety Considerations for Thread Adapters

Thread adapters used in power tools must comply with applicable safety standards in every market where they are sold. We manufacture our adapters to meet or exceed the requirements of relevant standards, including DIN standards for metric thread dimensions, ISO 291 for ISO metric thread tolerances, and ANSI/ASME B1.1 for UNC/UNF threads. Our quality management system ensures that every adapter we produce conforms to the dimensional and mechanical requirements specified in these standards.

We also pay close attention to the safety considerations outlined by occupational safety authorities. Properly dimensioned and adequately hardened adapters reduce the risk of accessory ejection during high-speed operation, a hazard that has caused serious injuries in workshops worldwide. We encourage our customers and end users to follow the machine guarding and safe operating guidelines published by organizations such as OSHA. By manufacturing adapters to exacting tolerances and verifying them with calibrated gauges, we contribute to a safer working environment for the end users of the tools that incorporate our components.

Why Choose Us as Your OEM Thread Adapter Partner

Selecting a manufacturing partner for custom thread adapters from drawing to mass production is a decision that affects your product quality, your brand reputation, and your bottom line. Here are the reasons our customers choose us and continue to work with us year after year:

Vertical integration. We control every production step from raw material to finished goods, giving us full visibility into quality, cost, and scheduling.

In-house tooling capability. We design and fabricate our own forming dies, thread-rolling dies, and CNC fixtures, which means faster lead times and no dependency on external tool shops.

Proven track record. We have served global markets for years, delivering precision forged components to distributors and tool brands who demand consistent quality shipment after shipment.

Flexible MOQ and OEM/ODM support. Whether you need a small trial order or a full container load, we work with you to find the right production quantity and customization level for your market.

Comprehensive documentation. We provide first article inspection reports, material certificates, calibration records, and process control data that support your quality system and regulatory compliance.

Application engineering support. Our team helps you select the right material, thread specification, and surface treatment for your target application, reducing the risk of field failures and warranty claims.

Single-source convenience. By sourcing adapters, pressure plates, conversion rods, and flange kits from us as your single manufacturer, you simplify procurement and ensure dimensional compatibility across your entire product line.
