A small adapter can determine whether an industrial finishing line runs smoothly or loses hours to vibration, seized threads, or accessory failure. In rust removal and polishing, the conversion joint is the mechanical link between the power tool and the abrasive head, so its fit, balance, material, and load capacity directly affect safety and surface quality. This guide explains how to assess application demands, spindle compatibility, corrosion protection, manufacturing quality, and total cost of ownership. For procurement teams and maintenance engineers, choosing the right component is not just a catalog decision—it is a practical way to reduce downtime, extend tool life, and keep metal surface treatment consistent.
Define Requirements for a Rust Removal and Polishing Conversion Joint
When setting up or optimizing a metal surface treatment line, selecting the right spindle adapter, arbor, or flange adapter—sometimes marketed as a rust removal and polishing conversion joint—is a critical operational detail. This adapter serves as the essential bridge connecting the high-speed power source to the abrasive head. If it fails or vibrates excessively, the finishing operation can experience significant downtime.
To maintain steady production, procurement should move beyond generic catalog browsing. It is necessary to evaluate material specifications, machining tolerances, and safety compliance to ensure the components meet the strict demands of heavy-duty industrial environments.
Workpiece and Application Needs
First, evaluate the workpiece material and the specific application intensity. It is crucial to distinguish between the physical interfaces required for different tasks: aggressive rust removal and mill scale stripping using wire wheels or flap discs requires highly rigid flange adapters to handle heavy radial loads, whereas fine surface preparation on 304 stainless steel with buffing pads relies on arbors and backup plates designed for delicate balance. Because rust-removal environments expose tooling to moisture and abrasive debris, adapters should feature adequate corrosion protection—such as black oxide coatings, zinc plating, or stainless steel construction—to prevent threads from seizing over time.
For high-torque applications, maintaining rigid concentricity and dynamic balance is vital to prevent uneven abrasive wear, poor surface finishes, and operator fatigue. Furthermore, adherence to rotational safety standards requires precise matching of components. The adapter must be structurally rated to safely handle the tool's maximum operating speed, while the abrasive itself (whether a wire wheel, flap disc, or buffing pad) carries the primary speed rating and must comply with standards like ANSI B7.1 or EN 12413 to prevent disintegration.
Tooling and Compatibility Requirements
Next, evaluate how the spindle adapter integrates with existing equipment. Thread compatibility is non-negotiable for standard M14x2.0 metric spindles or imperial 5/8"-11 setups. Procurement must verify thread direction (left-hand vs. right-hand), arbor bore diameter, and ensure proper flange and guard clearance. Beyond threaded options, facilities should also consider non-threaded mounting methods like keyed flanges, set-screw arbors, or quick-change systems depending on the tool interface. Safety protocols strictly prohibit the use of stacked or improvised adapters on high-speed angle grinders, as these create severe shearing risks under load.
While standards like EN 60745 govern the safety of the power tool itself, the adapter must be structurally capable of handling the tool's maximum torque and sudden heavy loads without failing. If the facility utilizes pneumatic grinders operating at a standard 90 PSI, the adapter's weight becomes a factor in preventing premature tool bearing wear over a long shift. Procurement should also factor in total cost of ownership (TCO), looking beyond the raw lifespan of the component to include potential downtime, labor for replacements, and inventory carrying costs.

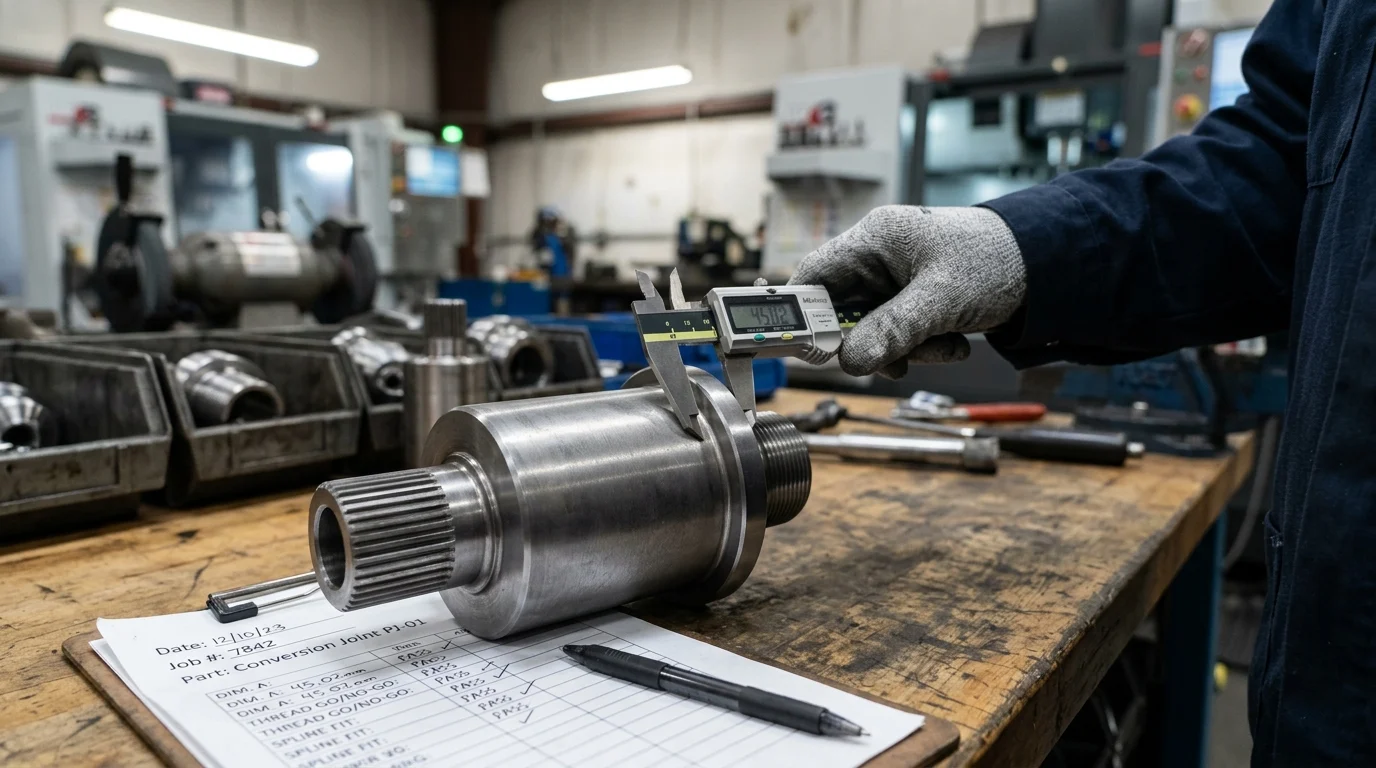

Compare Specifications and Manufacturing Quality
Once baseline operational requirements are established, a thorough review of technical specifications is necessary. Rather than relying solely on marketing materials, engineers should examine raw manufacturing data and auditable certifications.
When evaluating an industrial flange adapter, building a comparison matrix helps assess critical tolerances, material grades, and expected lifespans objectively.
Key Specs for a Comparison Table
Here is an actionable buyer’s checklist for comparing different spindle adapters.
| Selection Criterion | Typical Precision-Grade Target |
|---|---|
| Material Grade | Alloy Steel (e.g., 40Cr, SCM440) for high-speed use |
| Concentricity Tolerance | ± 0.01 mm (typical for high-speed use) |
| Max Safe Speed (RPM) | Rated for the tool's maximum operating RPM |
| Surface Hardness | HRC 45-52 for optimal wear resistance |
| Thread & Bore Sizing | Exact match for male/female, L/R thread, and arbor bore |
| Guard Clearance | Must allow proper seating of abrasive within safety guards |
Standard grade carbon steel adapters are often legitimately sufficient for low-RPM manual work or less intensive deburring tasks. However, if the operation runs multiple shifts at high speeds, the initial cost savings of a standard grade adapter may be quickly offset by the downtime required to replace worn parts. Using standard carbon steel components at high speeds without adequate safety context or guarding poses severe risks.
Materials, Forging Precision, and CNC Consistency
The performance metrics in the precision category depend entirely on the supplier's manufacturing process. It is advisable to inquire about a potential partner's forging and machining capabilities. Utilizing hot forging or CNC machining from alloy bar stock improves grain flow and structural integrity, ensuring the adapter can withstand high-stress industrial applications.
When a manufacturer supports this foundation with automated CNC machining and dedicated tapping equipment, batch-to-batch consistency improves significantly. This level of manufacturing control—ideally backed by ISO quality management certifications—ensures flawless thread integrity and minimizes defect rates, meaning each adapter threads smoothly and spins true.
Make the Final Sourcing Decision
Thoroughly covering specifications and manufacturing backgrounds leads to the final purchasing decision. Transitioning a production line to a new arbor adapter requires a structured vetting process.
Making the final sourcing call involves a mix of practical pilot testing and strategic supplier evaluation to ensure long-term supply chain stability and compliance with industrial procurement standards.
Practical Testing Before Approval
Before signing off on a large purchase order, mandate a pilot run. Rather than ordering an arbitrary number of units, utilize a statistically grounded sampling guideline based on total lot size and Acceptable Quality Limits (AQL) for validation.
These units should undergo rigorous testing under maximum radial load. Crucially, this testing must replicate the actual abrasive stack-up and guard configuration used in production. Inspectors should check for thread galling, micro-fractures, and any shift in runout. Evaluate the adapters against recognized inspection protocols and ISO runout tolerances. If the concentricity deviates beyond permissible standards after the stress test, the batch should be flagged. A reliable spindle adapter must survive the demanding conditions of the shop floor, maintaining structural integrity throughout its intended lifecycle.
When to Prioritize a Precision Manufacturing Supplier
When
Key Takeaways
- Match the conversion joint to the tool spindle size, thread direction, arbor bore, flange diameter, and guard clearance before approving it for production use.
- Use rigid flange adapters for aggressive rust removal with wire wheels or flap discs, and choose balanced arbors or backup plates for fine polishing work.
- Select corrosion-resistant finishes such as black oxide, zinc plating, or stainless steel when adapters will be exposed to moisture, debris, or rust-removal residue.
- Avoid stacked or improvised adapters on high-speed grinders because misalignment and shear stress can create serious safety hazards.
- Evaluate total cost of ownership by considering adapter lifespan, downtime, replacement labor, tool bearing wear, and inventory requirements.
Frequently Asked Questions
What is a rust removal and polishing conversion joint used for?
It connects a grinder, drill, or spindle to accessories such as wire wheels, flap discs, buffing pads, or polishing heads, allowing the tool to perform rust removal, deburring, polishing, or surface preparation safely and efficiently.
How do I choose the right thread size?
Match the adapter to your tool spindle, such as M14x2.0 for many metric angle grinders or 5/8"-11 for common imperial setups. Always verify thread direction, arbor bore, flange size, and guard clearance before installation.
Why does concentricity matter in a conversion joint?
Good concentricity reduces vibration, uneven abrasive wear, poor surface finish, and operator fatigue. For high-speed industrial work, a poorly machined adapter can shorten tool life and increase safety risks.
Can one adapter be used for both rust removal and polishing?
Sometimes, but the adapter must match the accessory, load, and speed requirements. Heavy rust removal with wire wheels needs rigid support, while polishing pads often require better balance and more controlled pressure.
What materials or coatings are best for harsh environments?
Rust-prone or abrasive environments benefit from black oxide, zinc plating, or stainless steel construction. These finishes help reduce corrosion, thread seizure, and premature replacement.
