In high-speed fabrication environments, a grinder’s performance often depends on components most operators rarely notice. Pressure plates, flanges, and conversion rods determine how securely an abrasive disc is held, how accurately it runs, and whether the tool can handle demanding industrial workloads without excessive vibration or premature wear. With 125mm professional grinders commonly exceeding 11,000 RPM, even small deviations in thread fit, balance, or material quality can become serious safety and productivity risks. This article examines the market demand, technical specifications, sourcing priorities, and operational checks that manufacturers, distributors, and maintenance teams should consider when selecting precision angle grinder hardware.
Why Angle Grinder Pressure Plates and Conversion Rods Matter
As global demand rises in industrial manufacturing supply chains, the smallest components often dictate the success of the entire operation. For heavy-duty metal fabrication, angle grinders rely entirely on the safety and precision of their pressure plates and conversion rods—the essential hardware that locks abrasive discs to the spindle and adapts thread sizes. This guide examines the technical specifications and sourcing criteria for these critical components that operators rely on daily to maintain safety and efficiency.
Demand Drivers and Market Applications
As industrial manufacturing scales globally, the technical requirements for OEM power tool accessories have become increasingly stringent. Across aerospace fabrication, automotive bodywork, and heavy construction, tools are pushed harder than ever. Standard off-the-shelf parts are often insufficient for serious industrial applications, where modern professional angle grinders frequently hit rotational speeds exceeding 11,000 RPM for a standard 125mm disc. At those intense velocities, thermal expansion and tool wear become serious operational liabilities. This reality necessitates high-precision components engineered to handle demanding, high-stress environments without failing mid-shift.

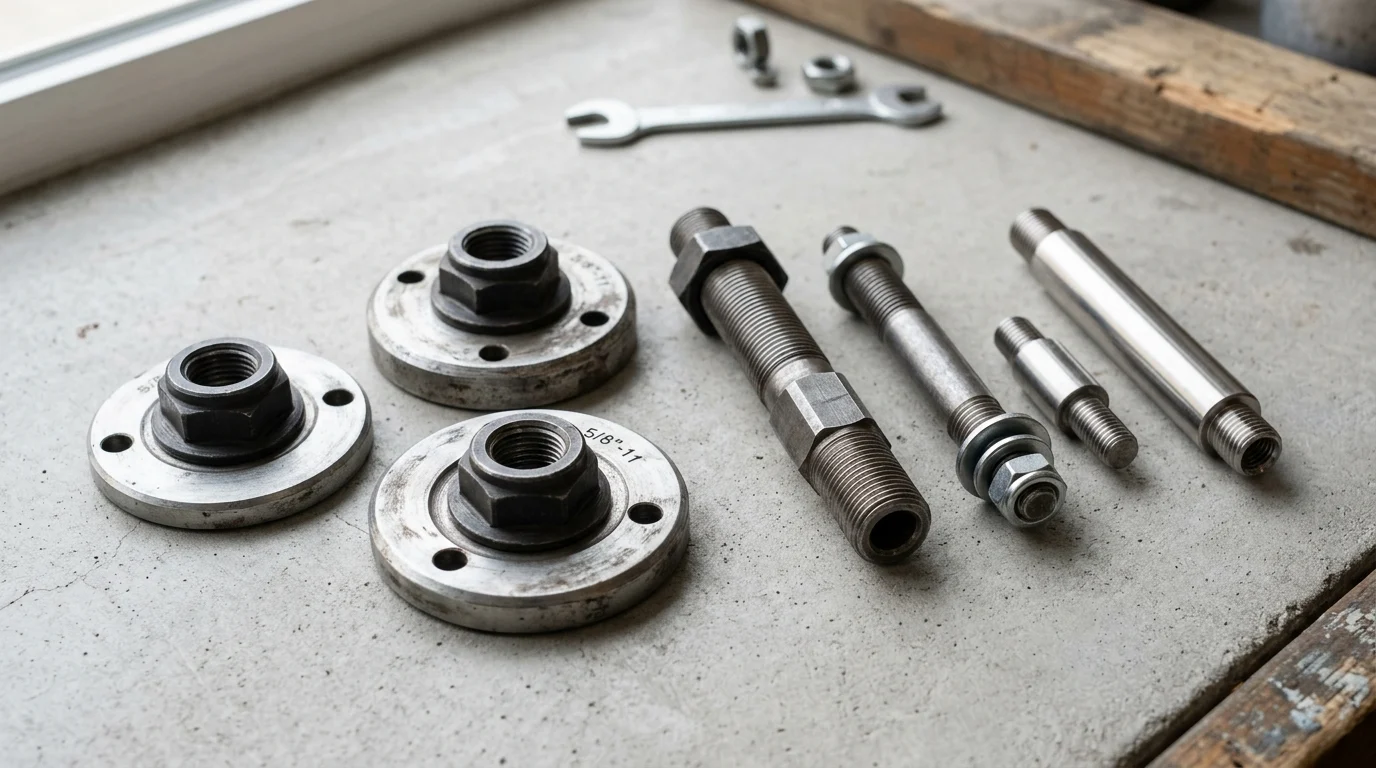

Key Roles of Pressure Plates, Flanges, and Conversion Rods
Stripping down an angle grinder reveals that pressure plates, flanges, and conversion rods are the unsung heroes of the tool. The pressure plate and flange essentially sandwich the abrasive disc, locking it securely to the spindle. If this industrial angle grinder flange nut is not perfectly balanced, it can lead to premature bearing failure. Conversion rods play an equally vital role, allowing operators to adapt spindles for different accessory threads, such as stepping a 5/8"-11 arbor down to an M14 thread. Evaluating these setups requires ensuring strict adherence to standard thread fit classes (such as Class 6H/6g for metric threads) to minimize runout.
However, a secure thread fit alone is insufficient for safe operation. Conversion rods and spindle adapters can alter disc guard clearance and overall tool geometry. Operators must always verify that the modified setup maintains proper guard coverage and balance before use. Furthermore, using spindle adapters may void OEM certifications or tool warranties, meaning modifications must be strictly evaluated against the original manufacturer's guard and spindle ratings alongside general thread-fit classes.

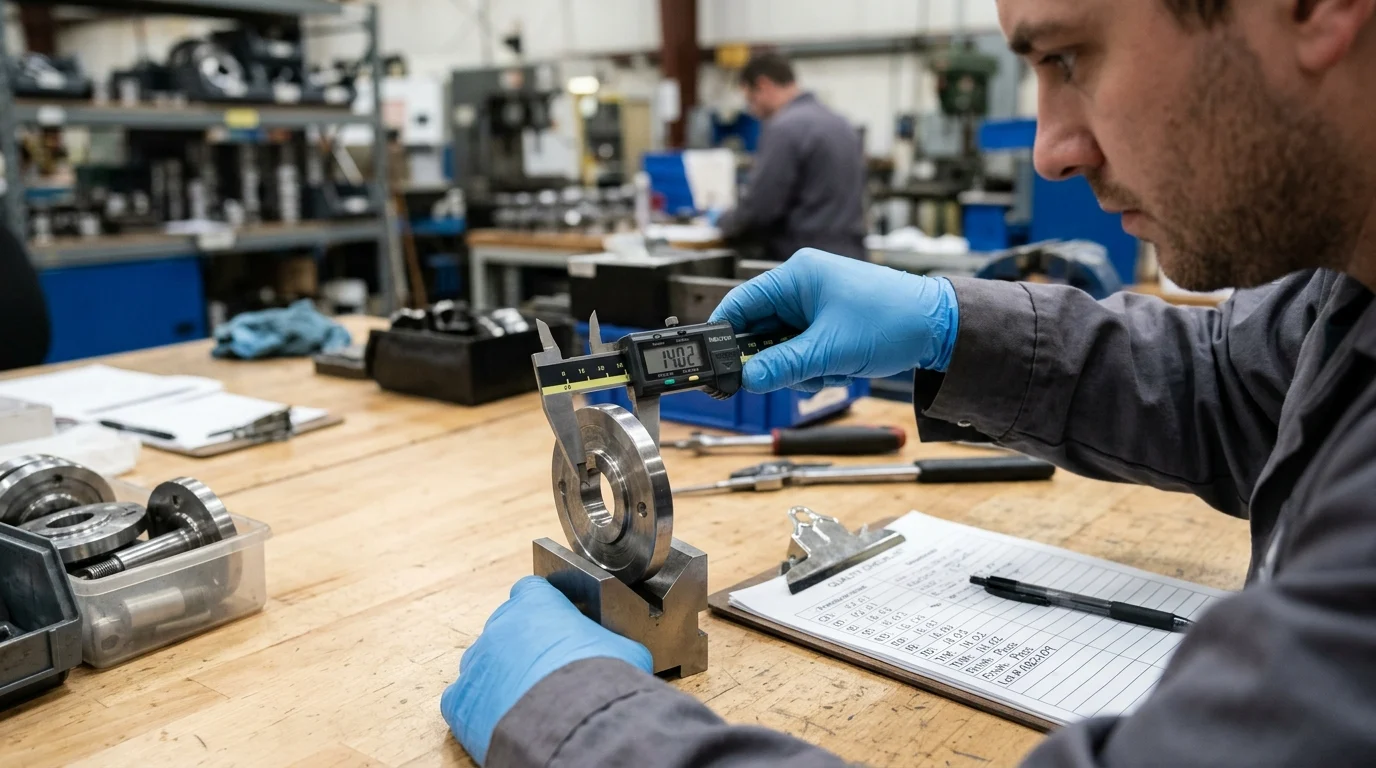

Specs That Define High-Precision Components
Separating a premium component from a standard alternative comes down to manufacturing specifications. Stamping out a piece of metal is insufficient for parts expected to hold up under intense industrial stress.
Materials, Forging, Machining, Threading, and Concentricity
The foundation of high-quality components lies in the raw materials and the forming process. While high-carbon steel, such as C45 (1045), offers the necessary tensile strength for many heavy-duty applications, specific high-cycle geometries may require alloy steels or specialized case hardening. Top-tier manufacturers often utilize advanced multi-station cold forging and cold heading equipment to create a dense, void-free grain structure, though warm forging may be necessary for more complex profiles. Regardless of the forging method, post-forging heat treatments like quenching and tempering are essential to achieve the required fatigue resistance.
After the initial forming, machining and threading must be precise. With standard M14 or 5/8"-11 threads, utilizing an automatic tapping machine ensures the thread pitch is exact. Furthermore, tight concentricity is essential, with tolerances matched to the specific application. For high-speed operations, a concentricity tolerance of ≤ 0.02mm is often required. Maintaining this strict runout limit prevents dangerous tool vibration, mitigates severe operator fatigue, and ensures compliance with rigorous safety standards, such as EN 60745-2-3 and ANSI B7.1, which dictate balance and structural integrity requirements for angle grinder wheel guards and mounting flanges.
Forged vs. Machined Parts Comparison
Procurement teams frequently evaluate whether forged or purely CNC machined parts are better for their tool lines. Multi-station cold forging followed by CNC finishing typically provides an optimal balance of structural strength, unit cost, and precision. Die casting is not a viable method for high-stress steel grinder components due to porosity risks, so it is excluded from high-performance evaluations. Below is a breakdown of how these manufacturing methods compare when scaling up production.
| Manufacturing Method | Grain Structure Integrity | Material Efficiency | Ideal Production Volume |
|---|---|---|---|
| Cold Forging + CNC | High (Continuous grain flow) | Excellent (Minimal waste) | High Volume |
| Pure CNC Machining | Moderate (Interrupted grain) | Low (High subtractive waste) | Low to Medium Volume |
The forged approach maximizes the metal's structural integrity while keeping material waste to a minimum, making it highly recommended for high-stress grinder components.
How Buyers Should Qualify Suppliers
Finding a reliable partner to manufacture these essential parts requires careful evaluation. Sourcing components from established industrial clusters offers significant supply chain advantages, but thorough vetting is necessary to identify top-tier manufacturers and ensure consistent quality.
Practical Audit Steps for Capacity and Quality Control
When auditing a potential angle grinder lock nut supplier, the first step is evaluating shop floor capabilities. Facilities must be equipped to handle large-scale production without compromising tight tolerances. High-capacity suppliers often operate an extensive array of fully automatic CNC machine tools and dedicated automatic tapping machines to maintain consistently low defect rates. Testing instruments are equally important; suppliers should verify tolerances on the floor using optical comparators and perform torque-load testing to simulate high-stress grinding applications. Audits should also confirm angle-grinder-specific quality controls, such as thread-form rolling verification for conversion rods, flange nut hardness testing protocols, and spindle-adapter guard-clearance reports. Regarding production scale, buyers should evaluate Minimum Order Quantities (MOQs) based on their specific volume needs and part complexity, ensuring the supplier's capacity aligns with the required production run rather than relying on arbitrary thresholds.
Final Sourcing Decision Criteria
Ultimately, making the final sourcing decision comes down to supply chain resilience, integration, and consistency. An ideal partner provides comprehensive manufacturing oversight, from raw material sourcing to final batch testing.
Key Takeaways
- Verify pressure plate balance and flange fit before high-speed operation because poor concentricity can accelerate vibration and bearing failure.
- For 125mm angle grinders operating above 11,000 RPM, use precision-machined components designed for thermal stress and industrial duty cycles.
- Check conversion rod compatibility against thread standards such as metric Class 6H/6g to reduce runout and unsafe accessory movement.
- Confirm that spindle adapters preserve disc guard coverage and do not exceed the grinder manufacturer’s spindle and guard ratings.
- Select forged, heat-treated steel components when sourcing parts for heavy-duty fabrication, construction, automotive, or aerospace applications.
Frequently Asked Questions
What do angle grinder pressure plates do?
Pressure plates and flanges clamp the abrasive disc securely to the spindle, helping maintain balance, reduce vibration, and prevent disc movement during high-speed grinding or cutting.
Why are conversion rods used with angle grinders?
Conversion rods adapt spindle or accessory thread sizes, such as converting a 5/8"-11 arbor to an M14 thread, allowing compatible accessories to be used when safety and guard clearance are verified.
What specifications matter most for industrial pressure plates?
Key specifications include material strength, forging quality, heat treatment, machining accuracy, thread class, concentricity, and balance, especially for grinders operating above 11,000 RPM with 125mm discs.
Can spindle adapters affect angle grinder safety?
Yes. Adapters can change tool geometry, guard clearance, balance, and OEM warranty status. Operators should confirm guard coverage, spindle ratings, and thread fit before use.
Which materials are commonly used for high-duty grinder components?
High-carbon steel such as C45 or 1045 is common, while alloy steels or case-hardened materials may be used for higher fatigue resistance in demanding industrial applications.
