A small adapter can significantly expand what an electric drill can do—but only when it is matched and used correctly. Hexagonal conversion rods let users connect selected grinder-style polishing wheels, waxing pads, backing pads, and light brush accessories to standard drill chucks, reducing the need for extra single-purpose tools. The details matter: M14, M10, and M5 threads differ in size, pitch, load capacity, and typical application. Speed is just as critical, since drills often operate around 1,500–3,000 RPM while angle grinders may reach 10,000–12,000 RPM. This guide explains the practical differences, safe use cases, and specification checks that help prevent poor fit, wobble, thread damage, and unsafe operation.
M14, M10, and M5 Hexagonal Conversion Basics

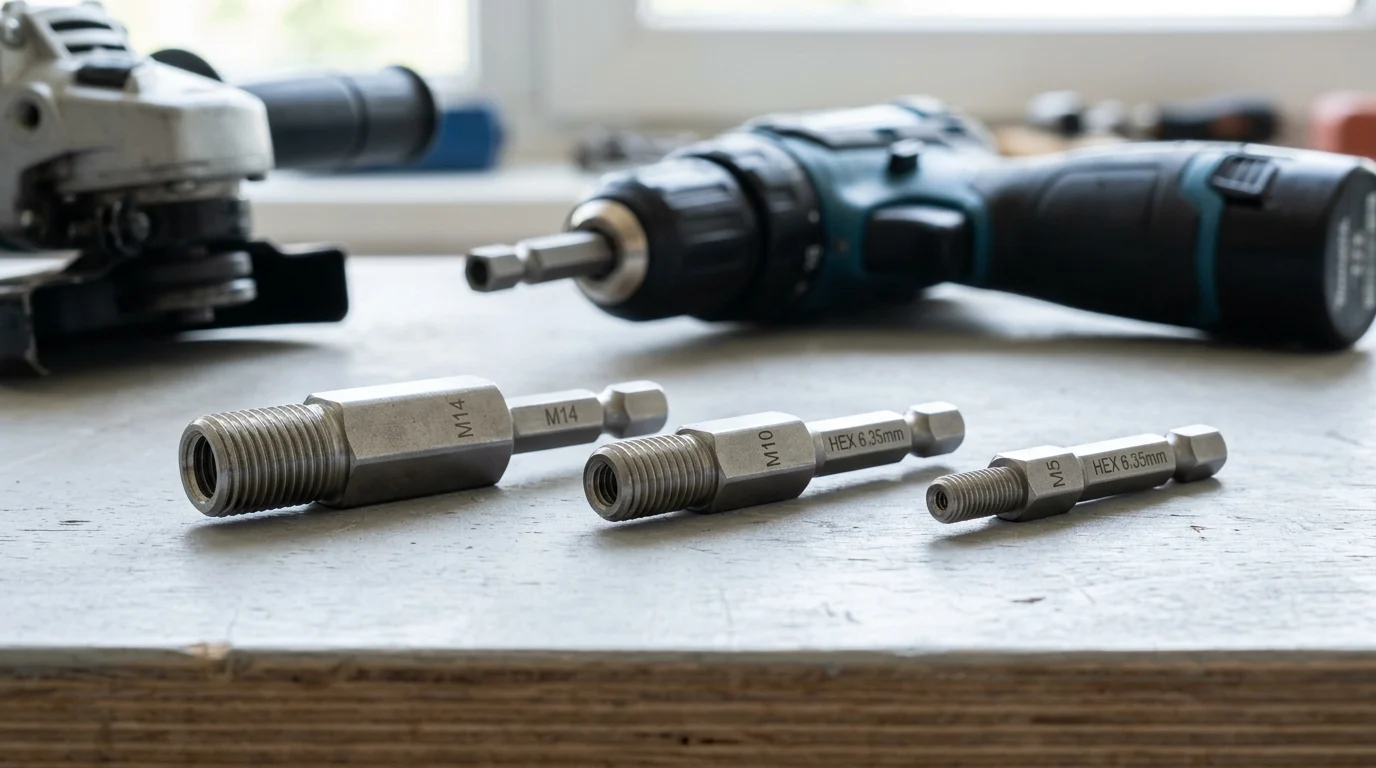

What M14, M10, and M5 Threads Mean
The designations M14, M10, and M5 refer to the metric thread specifications on the output end of the rod. The "M" stands for metric, and the number denotes the nominal outer diameter of the thread in millimeters. An M14 thread has a 14mm diameter and is standard for heavy-duty angle grinders in Europe and parts of Asia, handling high-torque applications. M10 is typically found on smaller 100 mm (4-inch) angle grinders.
M5 threads, featuring a standard M5x0.8 thread pitch, are reserved for lighter, precision attachments like small 50mm backing pads used in detail work. While M5 adapters are less common for standard electric drills—since the bulk of a full-sized drill makes micro-polishing cumbersome—they remain essential for specialized rotary tools and die grinders. Matching the correct thread pitch is crucial to prevent stripping under load. Although M14x2.0 and M10x1.5 are common coarse pitches, metric fine pitches also exist. Always verify the exact pitch with a thread gauge or the accessory manufacturer to ensure a perfect fit. Additionally, pay close attention to thread direction. While most standard adapters use right-hand threads, some rotary tools and angle grinders utilize left-hand (reverse) threads; mismatched rotation can cause adapters to loosen dangerously during operation.
Angle Grinder and Electric Drill Use Cases
Adapting accessories between an angle grinder (often regionally referred to as a "corner grinder," though they are the exact same tool category) and an electric drill expands tool versatility. Standard electric drills typically operate at lower speeds (around 1,500 to 3,000 RPM) compared to a typical 100 mm (4-inch) or 125 mm (5-inch) angle grinder, which generally spins at 10,000 to 12,000 RPM. Inserting a hex conversion rod into a drill chuck allows users to run wool polishing wheels for automotive detailing or light wire brushes without a dedicated low-speed polisher. Always ensure the drill's maximum no-load speed does not exceed the accessory's rated RPM. A quick way to verify safe running speeds is to check the accessory's printed label before mounting. Using a drill with a variable-speed trigger or dial is highly recommended for maintaining safe control.
CRITICAL SAFETY WARNING: Conversion rods are intended strictly for light axial or polishing loads. Side-load cutting, heavy grinding, or high-torque tasks require a dedicated angle grinder and should never be performed with a drill adapter. Drills lack the necessary safety guards, flanges, and speed ratings for cutting discs, creating a severe risk of disc shattering or kickback.
Key Specifications and Material Comparison
Understanding thread sizes is only the first step. When sourcing these adapters, examining their exact specifications and metallurgy is essential. A snapped conversion rod is a serious safety hazard, making it critical to understand material composition and forming processes.
Thread Size, Shank Type, and Compatibility
A complete guide to these adapters must account for physical dimensions. Most conversion rods feature an overall length typically ranging from 40mm to 50mm, a thread length of 10mm to 15mm, and a standard 1/4-inch (6.35mm) hex shank. While this 1/4-inch shank locks securely into impact-driver quick-release collets, standard three-jaw drill chucks behave differently. A hex shank can slip or wobble in a three-jaw chuck if not properly aligned. To minimize this, ensure the chuck jaws close flatly against the flat sides of the hex shank, tighten evenly, and always check the accessory for runout by spinning it freely before making contact with the workpiece. Standard 3/8-inch or 1/2-inch maximum chuck capacities easily accommodate these shanks without bottoming out.
On the output side, the thread must match the accessory's backing pad or flange. For example, a 100 mm (4-inch) grinder accessory often uses an M10 thread, though thread sizes can vary by manufacturer, region, and accessory design. Larger 125 mm (5-inch) accessories generally step up to M14 threads to handle increased rotational mass safely. For practical installation, always hand-start threads to avoid cross-threading, verify that the flange or washer fits snugly, and check tightness after a brief period of initial use.
45 Steel, A3 Steel, and High Carbon Steel
Raw material dictates the rod's lifespan and structural integrity. In modern forging and cold heading, manufacturers typically choose between three primary metals. A3 steel (equivalent to international standards like Q235 or ASTM A36) is a low-carbon option; it is inexpensive and easy to machine, but lacks the tensile strength for demanding applications. 45# steel (comparable to AISI 1045 medium carbon steel) is recommended for standard industrial use, as it strikes a reliable balance between strength and toughness after proper heat treatment. For high-stress applications, high carbon steel or advanced powder metallurgy parts offer superior wear resistance. Advanced machine forging and cold heading processes maintain tight tolerances across these materials.
Note: The hardness values below are generalized for comparison. A3/Q235 steel is typically too soft for the Rockwell C (HRC) scale in its raw form, and the final hardness of 45# steel depends heavily on the specific heat treatment applied.
| Material Type | Typical Hardness | Primary Characteristic | Best Use Case |
|---|---|---|---|
| A3 Steel (Q235) | 70 - 80 HRB (Qualitatively soft) | High ductility, low cost | Light DIY polishing |
| 45# Steel (1045) | 40 - 45 HRC (Post-heat treat) | Excellent strength-to-toughness | Standard industrial sanding |
| High Carbon | 50 - 55 HRC | Maximum wear resistance | Heavy-duty surface prep |
Sourcing, Inspection, and Selection
Whether stocking up on power tool accessories for distribution or outfitting a workshop, sourcing the right hardware requires a critical eye. A shiny surface finish does not guarantee internal quality.
Key Takeaways
- Match the conversion rod thread size and pitch—such as M14x2.0, M10x1.5, or M5x0.8—to the accessory before mounting it.
- Use hexagonal conversion rods only for light polishing, waxing, and similar axial-load tasks, not for cutting or heavy grinding.
- Check the accessory’s printed RPM rating and keep drill speed below that limit before operating.
- Choose a variable-speed drill for better control, especially when using polishing wheels or wire brush accessories.
- Verify thread direction because a left-hand accessory used with a right-hand adapter can loosen during rotation.
- Remember that electric drills typically run around 1,500 to 3,000 RPM, far below many angle grinders rated around 10,000 to 12,000 RPM.
Frequently Asked Questions
What do M14, M10, and M5 mean on hexagonal conversion rods?
They refer to metric thread diameters: M14 is 14 mm, M10 is 10 mm, and M5 is 5 mm. M14 is common on larger angle grinder accessories, M10 on smaller grinders, and M5 on light precision attachments.
Can I use an angle grinder cutting disc on an electric drill with a conversion rod?
No. Hex conversion rods are for light polishing, waxing, and similar axial loads only. Drills lack grinder guards, flanges, speed ratings, and stability for cutting discs, making cutting or heavy grinding dangerous.
Why is thread pitch important when choosing a conversion rod?
A matching thread pitch prevents poor engagement, wobble, and thread stripping under load. Common examples include M14x2.0, M10x1.5, and M5x0.8, but users should confirm the exact pitch before mounting accessories.
What RPM should I consider when using a drill adapter?
Always keep the drill speed below the accessory’s rated RPM. Electric drills often run around 1,500 to 3,000 RPM, while angle grinders may run 10,000 to 12,000 RPM, so check the accessory label before use.
Are right-hand and left-hand threads interchangeable?
No. Most adapters use right-hand threads, but some tools use left-hand or reverse threads. Using the wrong thread direction can cause the adapter or accessory to loosen during operation.
