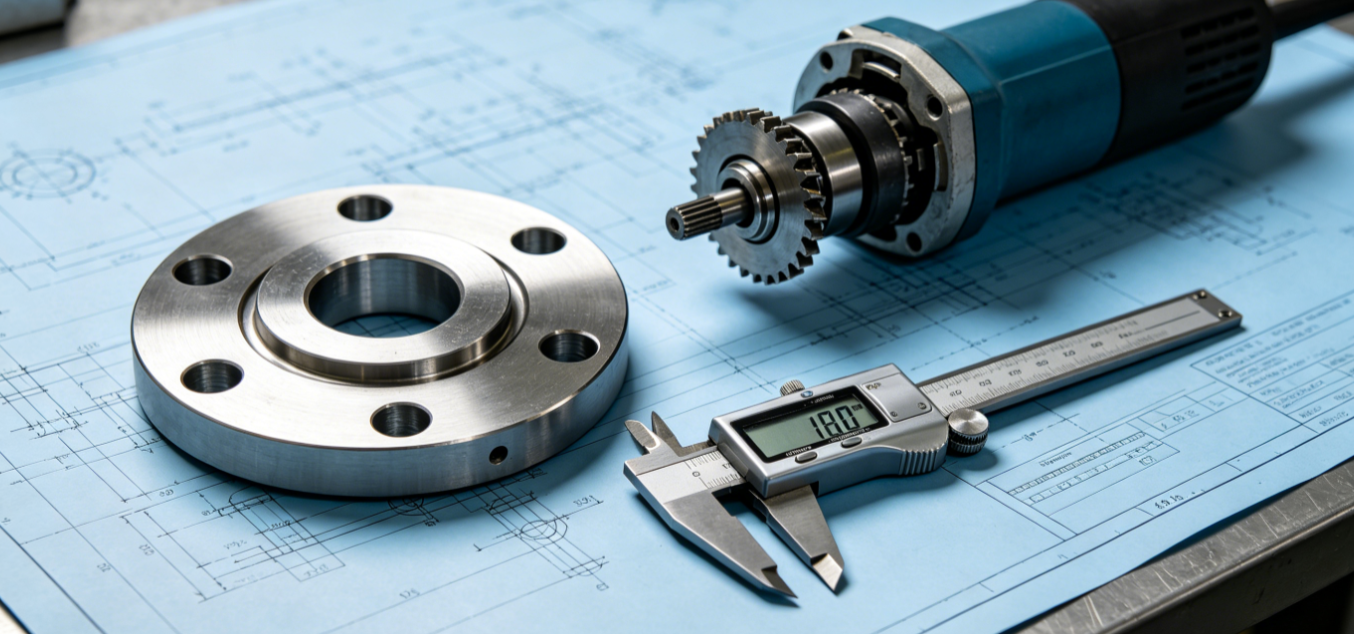

How to Measure an Angle Grinder Flange Correctly
Accurate flange measurement is essential before purchasing replacement parts or starting OEM manufacturing. This guide explains how to measure the outer diameter, inner bore, thickness, boss diameter, and thread size of an angle grinder flange using simple measuring tools.
- ✔ Step-by-step measurement guide
- ✔ Suitable for M10 & M14 flanges
- ✔ Verified dimensions from real products
- ✔ OEM & ODM customization support
Quick Answer
To measure an angle grinder flange accurately, record five key dimensions: outer diameter, inner bore, overall thickness, boss diameter, and thread size. These measurements determine whether the flange fits your grinder spindle and grinding disc correctly.
Use a digital vernier caliper whenever possible for accurate readings. Before placing an order, compare your measurements with the manufacturer's specifications. If the original flange is unavailable or damaged, OEM and ODM manufacturers can produce compatible parts based on technical drawings or physical samples.

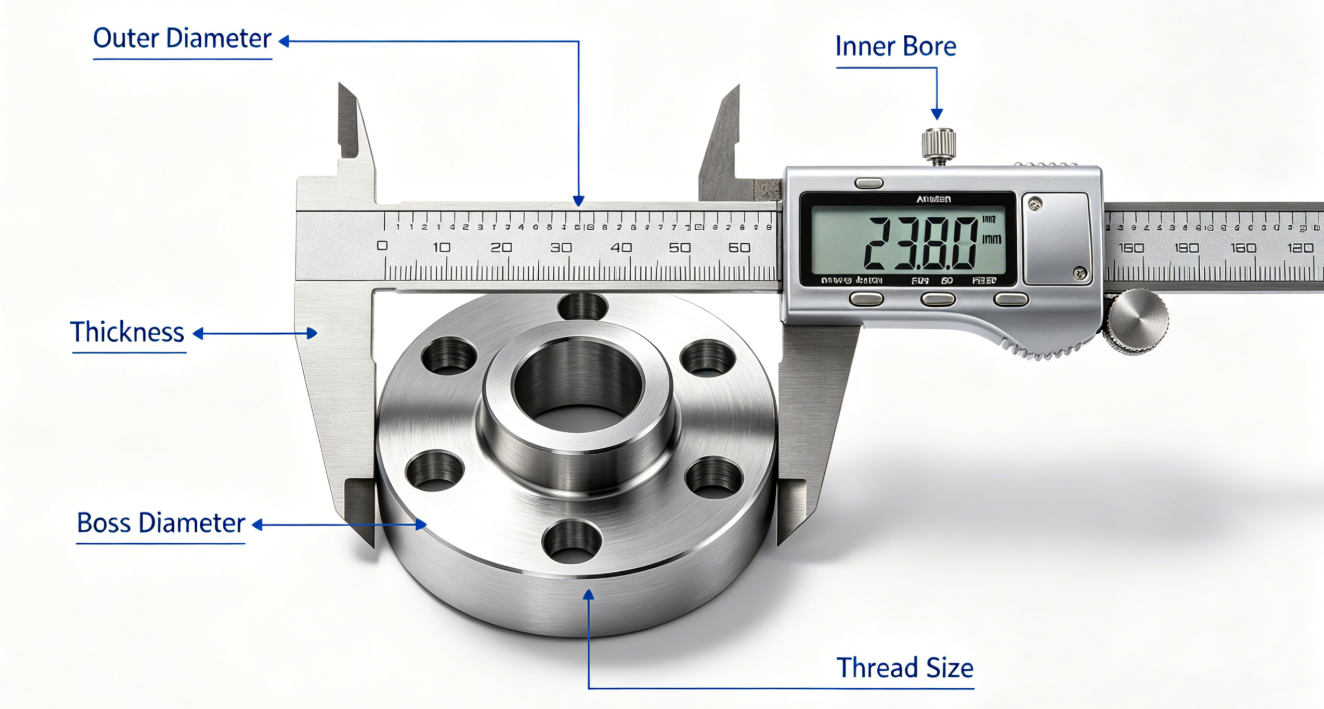

Angle Grinder Flange Measurement Guide
Typical Flange Dimensions from Glin Hardware Products
The following measurements are based on actual angle grinder flange products manufactured by Glin Hardware. These dimensions can be used as a reference when checking compatibility. OEM and ODM customization is available for special requirements.
| Type | Outer Diameter | Inner Bore | Thickness | Boss Diameter | Thread | Surface Finish |
|---|---|---|---|---|---|---|
| Upper Pressure Plate | 30 mm | 9 mm | 7 mm | 16 mm | M10 | Zinc Plated |
| Upper Pressure Plate | 40 mm | 12 mm | 8 mm | 22 mm | M14 | Zinc Plated |
| Lower Pressure Plate | 30 mm | 10 mm | 8 mm | 16 mm | - | Black Oxide |
| Lower Pressure Plate | 42 mm | 14 mm | 9 mm | 22 mm | M14 | Zinc Plated |
| Hexagonal Pressure Plate | 30 mm | 9 mm | 10 mm | 17 mm | M10 | Zinc Plated |
These specifications are provided as reference values only. Custom dimensions, materials, and surface treatments can be manufactured according to drawings, samples, or OEM project requirements.
What Is an Angle Grinder Flange?
An angle grinder flange is the component that secures the grinding wheel, cutting disc, or other accessories to the grinder spindle. A standard flange system usually consists of an inner flange (backing flange) and an outer flange (locking nut or pressure plate), which work together to hold the disc firmly during high-speed operation.
Although angle grinder flanges may appear similar, they differ in dimensions, thread specifications, boss diameter, and compatibility with different grinder models. Even small dimensional differences can affect clamping force, disc alignment, operating safety, and overall performance.
Before purchasing replacement parts or requesting OEM manufacturing, buyers should verify the actual flange dimensions instead of relying solely on grinder model names. Accurate measurements help ensure proper compatibility and reduce the risk of installation problems.
Step-by-Step Guide to Measuring an Angle Grinder Flange
Use a digital vernier caliper whenever possible. Record each measurement carefully before comparing it with product specifications or contacting your supplier.
Step 1 – Measure the Outer Diameter
Measure the maximum outside diameter of the flange. This dimension determines whether the flange provides adequate support for the grinding wheel or cutting disc.
Step 2 – Measure the Inner Bore
Measure the center hole that fits onto the grinder spindle. The inner bore must match the spindle accurately to ensure proper centering and safe operation.
Step 3 – Measure the Overall Thickness
Measure the total thickness of the flange. Thickness influences clamping force and the final position of the grinding disc.
Step 4 – Measure the Boss Diameter
Measure the raised locating boss that centers the grinding wheel. A correctly matched boss diameter minimizes vibration and improves rotational accuracy.
Step 5 – Verify the Thread Size
If the flange is threaded, identify the thread specification such as M10 × 1.5 or M14 × 2.0. Buyers in North America should also check whether 5/8"-11 threads are required.
Common Measurement Mistakes Buyers Should Avoid
Measuring Only the Outer Diameter
Many buyers measure only the outside diameter and overlook the inner bore, boss diameter, or thread size. Matching only one dimension is not sufficient for compatibility.
Ignoring Thread Specifications
Flanges with similar appearances may use different thread standards. M10, M14, and 5/8"-11 threads are not interchangeable and should always be verified before ordering.
Using Worn Components as Reference
Old flanges may have worn surfaces or damaged threads, leading to inaccurate measurements. Whenever possible, compare dimensions with original product drawings or verified manufacturer data.
Not Confirming Disc Compatibility
Besides flange dimensions, buyers should also verify the grinding wheel or cutting disc bore size to ensure the complete assembly works correctly.

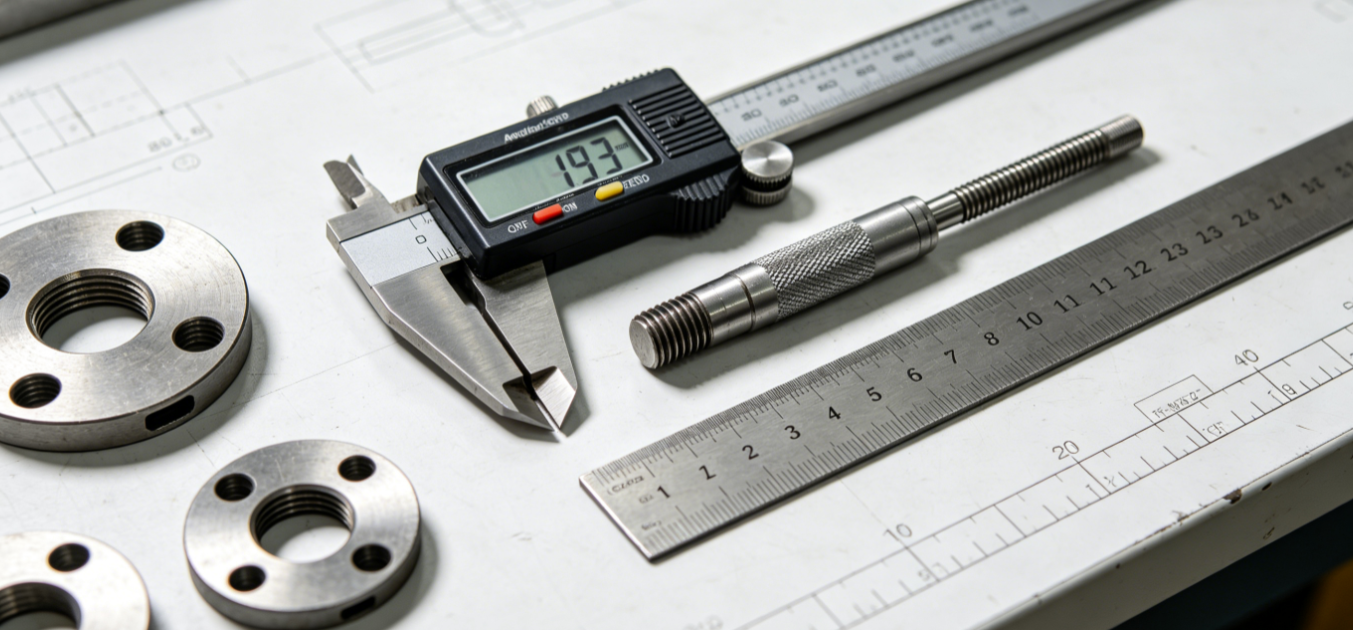

Recommended Measuring Tools
Accurate measurements require the right tools. Professional buyers and manufacturers generally use precision measuring instruments instead of estimating dimensions by eye. The following tools are recommended when verifying angle grinder flange specifications.
Digital Vernier Caliper
A digital vernier caliper is the preferred tool for measuring outer diameter, inner bore, boss diameter, and overall thickness. It provides accurate readings and is suitable for most inspection tasks.
Thread Gauge
A thread gauge helps identify thread specifications such as M10 × 1.5, M14 × 2.0, or 5/8"-11. Correct thread identification prevents ordering incompatible replacement flanges.
Steel Ruler
A steel ruler can be used for preliminary measurements when precision tools are unavailable. However, final purchasing decisions should always be confirmed using a vernier caliper.
Buyer Checklist Before Ordering Angle Grinder Flanges
Before placing an order, verify the following information to ensure the flange matches your grinder and application requirements.
- ✔ Confirm the grinder model and disc size.
- ✔ Verify the thread specification (M10, M14, or 5/8"-11).
- ✔ Measure the outer diameter and inner bore.
- ✔ Check the boss diameter for correct disc centering.
- ✔ Confirm the required surface finish (Zinc Plated or Black Oxide).
- ✔ Verify material requirements such as 45# Steel, High Carbon Steel, or other specified materials.
- ✔ Prepare drawings or physical samples if OEM or ODM customization is required.
- ✔ Confirm packaging, quantity, and delivery requirements before production.
OEM & ODM Custom Manufacturing Services
Standard flange specifications meet most replacement requirements, while many industrial projects require customized dimensions, materials, or surface treatments. Glin Hardware supports OEM and ODM manufacturing for distributors, wholesalers, brand owners, and industrial equipment manufacturers.
Customers can provide engineering drawings, physical samples, or detailed technical specifications. Our engineering team evaluates each project and recommends suitable manufacturing processes to ensure compatibility, production efficiency, and consistent product quality.
- ✔ Custom dimensions
- ✔ Custom materials
- ✔ Zinc Plating or Black Oxide finishing
- ✔ OEM logo and packaging
- ✔ Mass production support
Factory Capability
Glin Hardware specializes in manufacturing precision metal hardware components for power tools, including angle grinder flanges, pressure plates, cutting machine flanges, and circular saw flanges.
Our production facilities include forging equipment, cold heading machines, CNC machining centers, automatic tapping machines, and precision inspection systems. These capabilities enable stable production for both standard products and customized OEM/ODM projects.
- 40+ CNC machining centers
- Taiwan forging equipment
- Cold heading production line
- Automatic tapping machines
- Precision inspection instruments
- OEM & ODM manufacturing support
Quality Control for Every Angle Grinder Flange
Consistent quality is essential for angle grinder flanges because even small dimensional deviations can affect disc centering, clamping force, and operational safety. Glin Hardware applies quality control throughout the entire manufacturing process to ensure every flange meets customer specifications.
Material Inspection
Raw materials are verified before production to ensure the required steel grade and mechanical properties meet project requirements.
Dimensional Inspection
Critical dimensions such as outer diameter, inner bore, boss diameter, thickness, and thread specifications are inspected using precision measuring instruments.
Surface Finish Inspection
Surface treatments including zinc plating and black oxide are checked for appearance, coating consistency, and corrosion resistance.
Final Quality Verification
Finished products undergo final inspection before packaging to ensure dimensional consistency and reliable compatibility with customer applications.
Frequently Asked Questions
What dimensions should I measure before replacing an angle grinder flange?
Measure the outer diameter, inner bore, overall thickness, boss diameter, and thread specification before selecting a replacement flange.
Can M10 and M14 flanges be used interchangeably?
No. M10 and M14 flanges use different thread specifications and are generally not interchangeable.
How do I identify the correct thread size?
Use a thread gauge or refer to the grinder manufacturer's specifications. Common standards include M10 × 1.5, M14 × 2.0, and 5/8"-11.
Can you manufacture custom angle grinder flanges?
Yes. We provide OEM and ODM manufacturing based on customer drawings, samples, or technical specifications.
Which surface finish should I choose?
Zinc plating offers good corrosion resistance, while black oxide provides a durable industrial finish without significantly affecting thread dimensions.
Do you provide samples before mass production?
Yes. Sample production can be arranged for dimensional verification before mass manufacturing.
What information should I send when requesting a quotation?
Please provide flange dimensions, thread type, material requirements, surface finish, quantity, and drawings or photos if available.
