Precision-engineered cutting accessories designed for professional and industrial angle grinder operations.
Angle grinder attachments for cutting operations represent a critical category of industrial hardware that enables one of the world's most versatile power tools to perform precision cutting across a wide range of materials — from steel and stainless steel to concrete, tile, stone, and composite materials.
These attachments encompass cutting discs, pressure plates (upper and lower flanges), conversion joints, hexagonal adapters, and specialized arbors that connect cutting wheels to grinder spindles. The mechanical interface between the grinder and the cutting disc is where safety, performance, and efficiency are determined.
Modern cutting attachments are precision-machined components subject to extreme rotational forces, vibration, and heat. A well-engineered pressure plate or conversion joint ensures concentricity, minimizes runout, and maintains disc integrity at speeds exceeding 11,000 RPM — making material science and manufacturing precision paramount.
⚙️From construction sites to aerospace fabrication — the right angle grinder attachment defines the quality of every cut.
The angle grinder attachment market is experiencing robust growth driven by expanding construction, manufacturing, and infrastructure sectors worldwide.
The cutting attachment industry is undergoing rapid technological evolution. Here are the key trends shaping the future of angle grinder cutting operations.
High-carbon steel, powder metallurgy composites, and carbide-reinforced alloys are replacing conventional steel in pressure plates and flanges. These materials deliver superior hardness (HRC 40-50), extended service life, and resistance to thermal deformation under high-speed cutting conditions. Manufacturers are also exploring titanium-coated spindle adapters for corrosion resistance in marine and chemical environments.
Modern cutting attachment factories are deploying AI-assisted CNC machining centers that self-correct dimensional deviations in real time. Automated tapping machines, robotic quality inspection systems, and digital twin simulations of forging processes are reducing defect rates below 0.3% — a critical threshold for safety-rated cutting accessories supplied to industrial OEM customers.
The market is rapidly shifting toward modular conversion joint systems that allow a single angle grinder to accept multiple disc sizes (100mm to 230mm) and thread standards (M10, M14, 5/8-11). This reduces tool inventory costs for contractors and enables rapid on-site adaptation. Hexagonal quick-release systems and self-locking anti-vibration flanges represent the cutting edge of this trend.
Environmental regulations are driving adoption of trivalent chromium zinc plating over traditional hexavalent processes, while phosphating and blackening treatments are being reformulated with lower-VOC chemistry. Sandblasted matte finishes that enhance grip and reduce glare are increasingly specified by safety-conscious contractors in Europe and North America.
Next-generation cutting attachments are being developed with embedded vibration sensors and RFID chips that communicate with smart angle grinders. These systems monitor disc wear, rotational imbalance, and spindle torque in real time — alerting operators before catastrophic disc failure occurs. This IoT integration is particularly significant for high-risk industrial environments such as shipbuilding, oil & gas, and nuclear facility maintenance.
Post-pandemic supply chain disruptions have accelerated demand for regionally-sourced cutting attachments with certified quality documentation. Chinese manufacturers in the Ningbo-Yuyao industrial cluster — with established forging, cold heading, and CNC machining capabilities — are increasingly supplying tier-1 power tool brands directly, bypassing traditional distributor layers and offering 30-45% cost advantages with equivalent quality.
Angle grinder cutting attachments serve diverse industries. Understanding application-specific requirements drives smarter product selection and superior cutting outcomes.
In structural steel cutting, pressure plates must withstand continuous operation under heavy loads. Thickened upper pressing plates (100–230 type) with hardened steel construction prevent disc slippage during rebar cutting, angle iron sectioning, and structural profile work. M14 thread standards dominate this segment for their superior torque transmission.
Marine environments demand cutting attachments with superior corrosion resistance. Colored zinc-plated flanges and phosphated pressure plates provide 500+ hour salt spray protection. Conversion joints enabling 5/8-11 to M14 thread adaptation are essential for using American-standard grinders with metric European cutting discs on international shipyard projects.
Maintenance technicians require versatile conversion rods that transform standard hand drills into polishing and cutting tools. M10/M14/M5 hexagonal conversion rods enable a single cordless drill to perform cutting, polishing, and waxing operations — dramatically reducing tool inventory and improving on-site efficiency for electrical panel fabrication and equipment servicing.
Automotive body shops rely on precision-balanced cutting disc pressure plates to achieve clean, burr-free cuts in sheet metal without panel distortion. Anti-vibration flange designs with dynamic balancing certification are specified by major automotive OEMs for production line grinder tooling, where vibration-induced fatigue is a critical quality concern.
Diamond cutting disc applications in stone and tile work demand flanges with superior clamping force and perfect concentricity. The hexagonal pressure plate (30mm, edge-to-edge 17, inner hole 10mm) provides the secure disc retention needed for wet-cutting operations in granite countertop fabrication, ceramic tile installation, and concrete surface preparation.
Aerospace component finishing requires cutting attachments with the highest dimensional accuracy. CNC-machined flanges with ±0.05mm concentricity tolerance and dynamic balance ratings prevent micro-vibrations that could compromise surface finish quality on titanium and aluminum aerospace components. Custom thread specifications and material certifications are standard requirements in this segment.
Yuyao Guling Hardware Co., Ltd. is a modern high-tech manufacturing enterprise headquartered in Yuyao, Ningbo, one of the most representative manufacturing clusters in China. Relying on a mature industrial foundation and a comprehensive supply chain system in the region, the company has long focused on the research and manufacturing of mid to high end precision forgings and integrated metal forming solutions.
Currently, the company operates Taiwan machine forging, cold heading forming, and models such as 19B, 24B, 28B, 136, 207, 106, etc. We provide stable support for industrial customers who have strict requirements for performance, consistency, and reliability — including 40 fully automatic CNC machine tools, automatic tapping machines, and precision testing instruments.
The factory specializes in producing hardware accessories for electric tools, with expertise in angle grinder pressure plates, cutting machine pressure plates, and electric circular saw pressure plates in common specifications from 100 type through 230 type.
Our factory specializes in producing hardware accessories for electric tools, with a focus on angle grinder pressure plates, cutting machine pressure plates, and electric circular saw pressure plates. Common specifications include 100 type, 125 type, 150 type, 180 type, and 230 type.
Materials used include 45# steel, A3 steel, and high carbon steel, with select products utilizing powder metallurgy technology for near-net-shape forming. Our complete process route — forging/stamping → machining → heat treatment → surface treatment → testing — ensures every component meets the stringent demands of professional cutting operations.
Thread compatibility spans M10, M14, and 5/8-11 standards, enabling our conversion joints and pressure plates to interface with virtually every major angle grinder brand and cutting disc specification available globally.
🎯Every cutting attachment we produce is engineered to perform — from the first cut to the ten-thousandth.
Four pillars of manufacturing excellence that set our angle grinder cutting attachments apart from the competition.
Produce according to customer drawings/samples, thread M10, M14, 5/8-11, etc. OEM and ODM services available for all cutting attachment specifications.
CNC machining, dimensional tolerance ±0.05mm, high concentricity. Precision that ensures perfect disc seating and vibration-free cutting performance.
Three tests including pressure testing, dynamic balancing, and salt spray rust prevention — ensuring every cutting attachment meets industrial-grade durability standards.
Patented designs for anti-lock, self-locking, and anti-skid cutting attachment mechanisms — providing superior safety and performance in high-demand cutting operations.
Mainstream machining route — from raw material to precision-finished cutting attachment component.
45# round steel / A3 steel / high carbon steel selection, inspection, and precision cutting into blanks.
Forging/stamping for bulk production or powder metallurgy for near-net-shape forming.
Turning, milling, drilling, grinding, and deburring to achieve ±0.05mm tolerance.
Quenching + tempering to HRC 35-45 hardness and stress relief for dimensional stability.
Blackening, phosphating, galvanizing, or sandblasting for corrosion resistance and aesthetics.
Dimensional, hardness, 48-hour salt spray, and appearance inspection before shipment.
Rust-proof bag and carton packaging, classified by specification for global distribution.

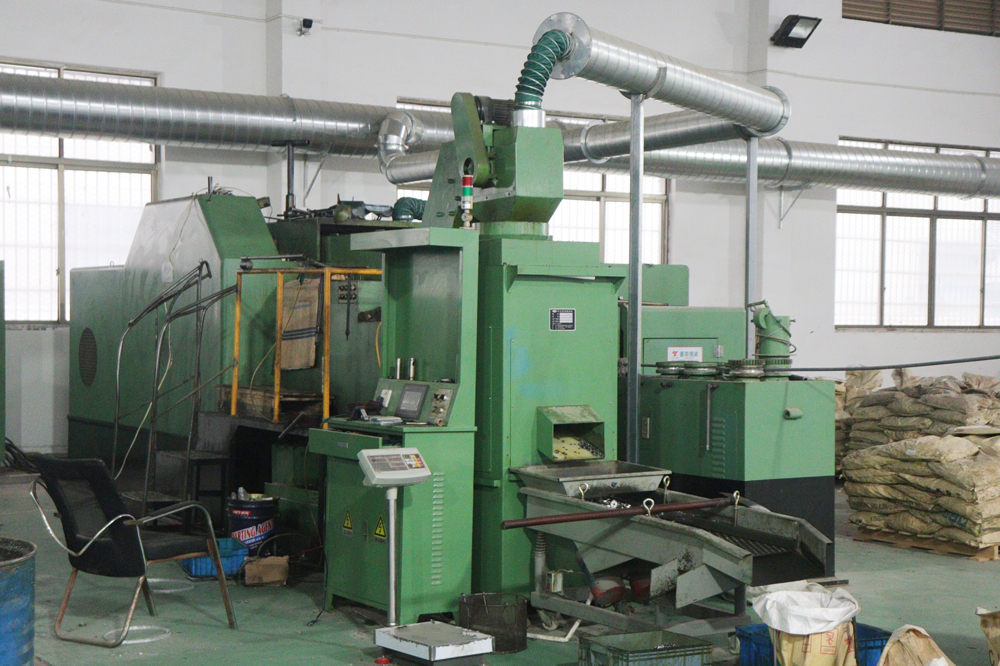

Our advanced production facility houses 40 fully automatic CNC machine tools, automatic tapping machines, and precision testing instruments dedicated to cutting attachment manufacturing.
Looking towards the future, Yuyao Guling Hardware Co., Ltd. will continue to focus on engineering innovation and manufacturing discipline, deepen the application boundaries of metal forming technology, and provide more stable, reliable, and long-term value manufacturing support for global industrial customers. Choosing products from Guling is a wise decision for you. We welcome users to visit and inquire about our products to gain a deeper understanding, benefit each other, and create brilliance together. Guling Hardware, looking forward to cooperation!
Explore our complete portfolio of precision-engineered cutting operation accessories — designed for every professional application.
